Rail & Transit Inspection Robot Dog

Why rail operators buy this

Inspection windows are the bottleneck

Track access is expensive

Every infrastructure walkdown competes with train movements for possession time. A robot working in the small hours or between headways adds inspection capacity without touching the timetable.

Infrastructure is scattered

Traction substations, relay rooms, cable ducts and tunnel sections sit kilometres apart. One legged platform covers indoor, outdoor and tunnel duty in a single asset — no rails to install, no drone permits.

Defects hide in the dark

Thermal anomalies in traction power equipment, water ingress in tunnels and fastener degradation develop quietly. Night rounds with thermal capture find them before they become delays.

What the system does on route

Traction substation rounds — thermal imaging of transformers, rectifiers and busbars, plus meter and indicator reading, logged per asset on the site map.
Tunnel patrol — visual capture of lining condition, water ingress, cable tray status and drainage paths, geolocated to route position; GPS-denied SLAM handles the tunnel darkness.
Depot and wayside plant — structured walks of relay rooms, signal equipment areas and power feeds with anomaly flagging on every pass.
Ballast and platform terrain — the legged platform walks ballast, cope stones, ramps and platform steps — terrain that defeats wheeled robots.
Repeatable inspection routes — identical camera positions every round make change-over-time comparison reliable: new cracks, new corrosion, new hot spots stand out.
Maintenance system integration — defects exported as geolocated work items via API into your asset management or maintenance system.

Rail infrastructure configuration

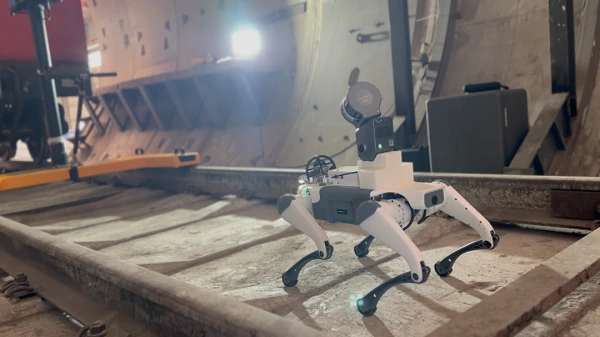

Quadruped robot on rail tracks inside a rail tunnel for patrol

Tunnel and confined-corridor patrols — visual, thermal and positional data captured without track possession

Typical configuration

Reference specification — adapted to your network

Thermal camera	Radiometric module for traction power equipment, from transformer yards to tunnel cable runs
Visible camera	4K with zoom and low-light performance for tunnel and night work
Navigation	3D LiDAR SLAM, GPS-denied for tunnels; ballast, ramp and step traversal for outdoor routes
Terrain	Legged mobility across ballast, platform edges, stairs and uneven depot floors
Runtime / charging	Platform-dependent; night-round scheduling supported
Environmental	IP67 typical; dust and humidity protection for tunnel atmosphere
Software	ROS 2 + Python SDK; dashboard with route map, thermal library, change-comparison view and report export
Integration	Defects exported as geolocated work items via REST API / webhooks to your asset management system

Scope note: All routes are planned jointly with your infrastructure and signalling teams. The robot’s safe working areas, times and emergency-stop procedures follow your rule book — proximity to live traction power and train movements is governed by your safe-system-of-work.

Deployment blueprint

How a rail & transit deployment typically looks

A reference shape for a quadruped inspection rollout in rail & transit. Every system is re-scoped to your site — this is the typical starting point, not a fixed offer.

Typical environments

Track formations & ballast
Tunnels & bridges
Catenary / OLE structures
Stations, depots & level crossings

Key constraints

Live-track & signalling rules
Limited engineering possessions
Clearance & gauge limits
Vibration & lighting variation
Public-area access

Platform, payload & routine

Rugged quadruped (e.g. Unitree B2 / DEEP Jueying X20)
Payload: visible + thermal + LiDAR / crack & defect detection
Routine: infrastructure patrol in possession windows, tunnel & catenary inspection
Defect trend logging for asset management

What you can expect: More frequent inspection within short possession windows; earlier detection of track and structure defects; consistent records for asset-management trends.

From route survey to live patrols

Deployment and expected value

Route survey

Priorities, terrain, safe working windows and access points agreed with your infrastructure team.

System build & test

Payload and reporting formats tuned; routes validated under supervision before autonomy.

Commission & handover

Live patrols on schedule, operators trained, defect data feeding your maintenance system.

0

track possessions consumed

Night

patrol capability, thermal-ready

Repeat

camera positions for change detection

4–8

weeks to deployment (typical)

Related insights

Questions engineers ask before a pilot

Can it work on ballast, and inside a short possession window?

Yes to both. Ballast, sleepers, cable troughs and uneven cess walking are routine terrain for an industrial quadruped, and because the system is portable it can be on the track as soon as possession is granted and off again before handback. The value is density: you cover far more of the asset per window than a walking inspection team can.

What does it inspect in a tunnel or on a structure?

The repeatable wins are tunnel lining defects, crack mapping and water ingress, third-rail and cable route condition, drainage and sump levels, and platform-edge or structure clearance checks. High-resolution imagery tied to exact chainage means you compare like with like across surveys and can see a defect developing rather than rediscovering it.

Does it need traction current or overhead line isolated?

A quadruped is ungrounded and does not interface with the traction system, so it does not itself require an isolation. What governs access is your own safe system of work: the robot operates inside the same possessions, lookouts and permit regime as any other trackside activity. We work to your rulebook rather than asking you to adapt to the robot.

How is the data tied to asset location?

Every reading and image is tagged to chainage or to your linear referencing scheme, so a defect drops straight into the asset register at the right location. Output exports to your existing asset management or inspection system via standard API or scheduled file export, and can remain fully on-premise.
